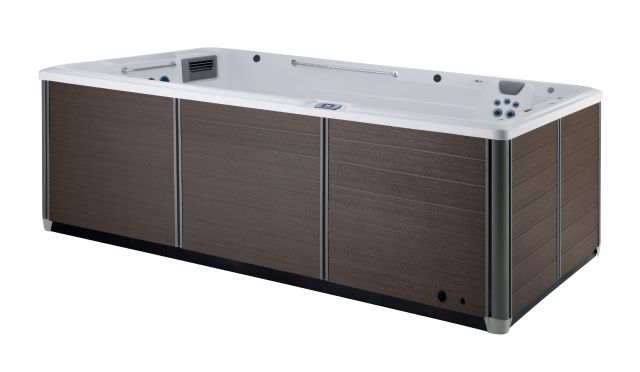

RecSport® R500 Recreation Systems
More to love.
Enjoying all the physical and non-physical benefits of water is what RecSport® Recreation Systems are all about. With our most expansive recreation space yet, the unique design of the R500 maximizes the interior space to provide a wide-open space, comfortable spa seating and a 30-inch deep reef area for kids to play. There’s more to love with the R500.
|Dimensions||15′ L X 50″ H X 89″ W|
|Water Capacity||1,785 Gallons|
|Weight||2,055 lbs. (Dry) / 18,690 lbs. (Filled*)|
|Hydromassage Jets – 27||1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets|
|Swim Technology||3 Swim Jets – Max 215 Gallons Per Minute|
2.5 HP XP3 Continuous Duty
5.2 HP Breakdown Torque
|Lighting System||24 Multi-Color LED Points of Light|
|Water Feature||1 Illuminated Waterfall|
|Control System||LCD Control Panel; 230v/30amp, 60 Hz, Field Adjustable 230v/60amp|
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
|Ozone System||CD Ozone|
|Effective Filtration Area||100 sq. ft.|
|Substructure||Wood Frame and ABS Base Pan|
|Energy Efficiency||EPS Foam + Reflective Film; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law|
|Stainless Steel Grab Rails||3 Stainless Steel Rails|

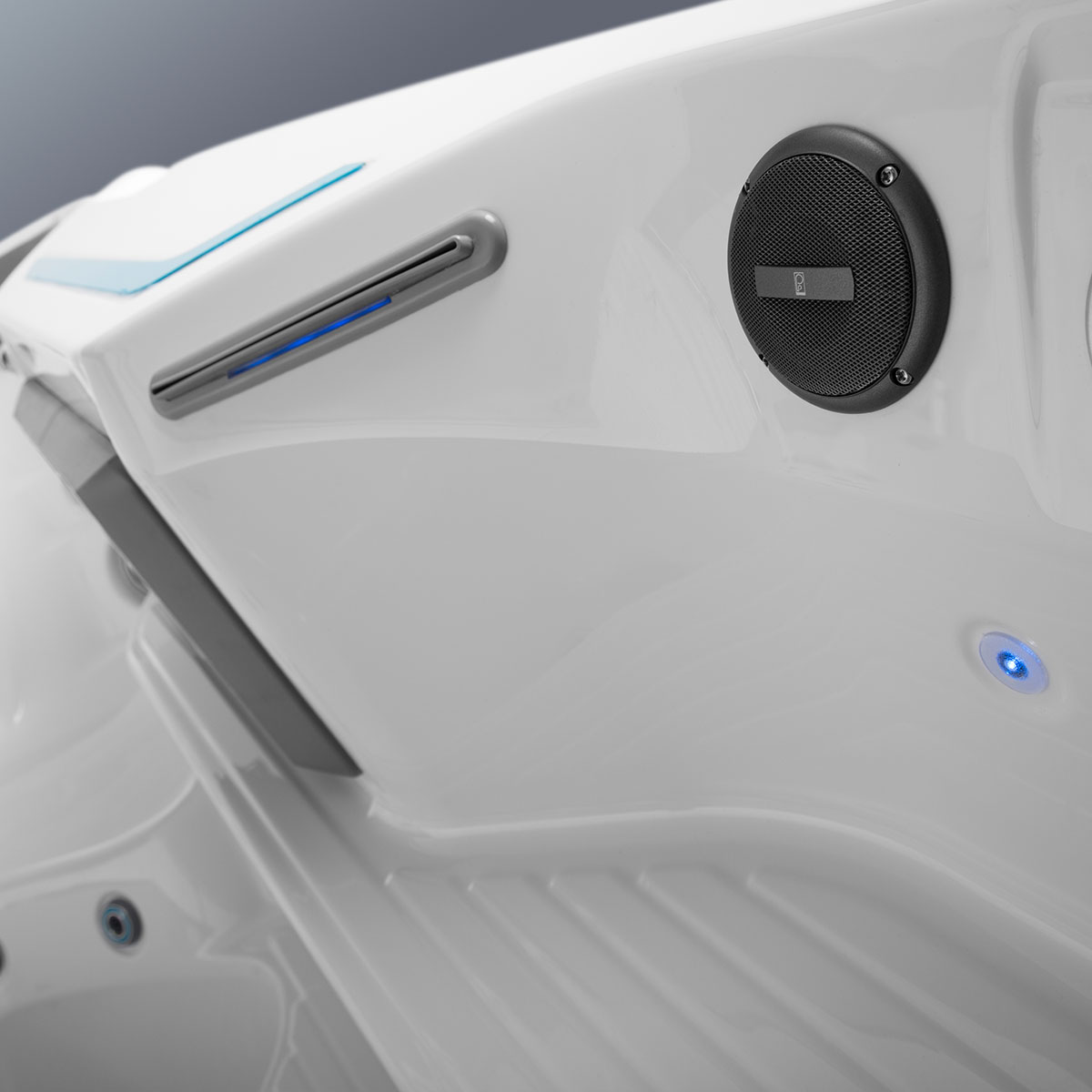

|Music Option||8 Speakers + Subwoofer, Bluetooth®-Enabled|

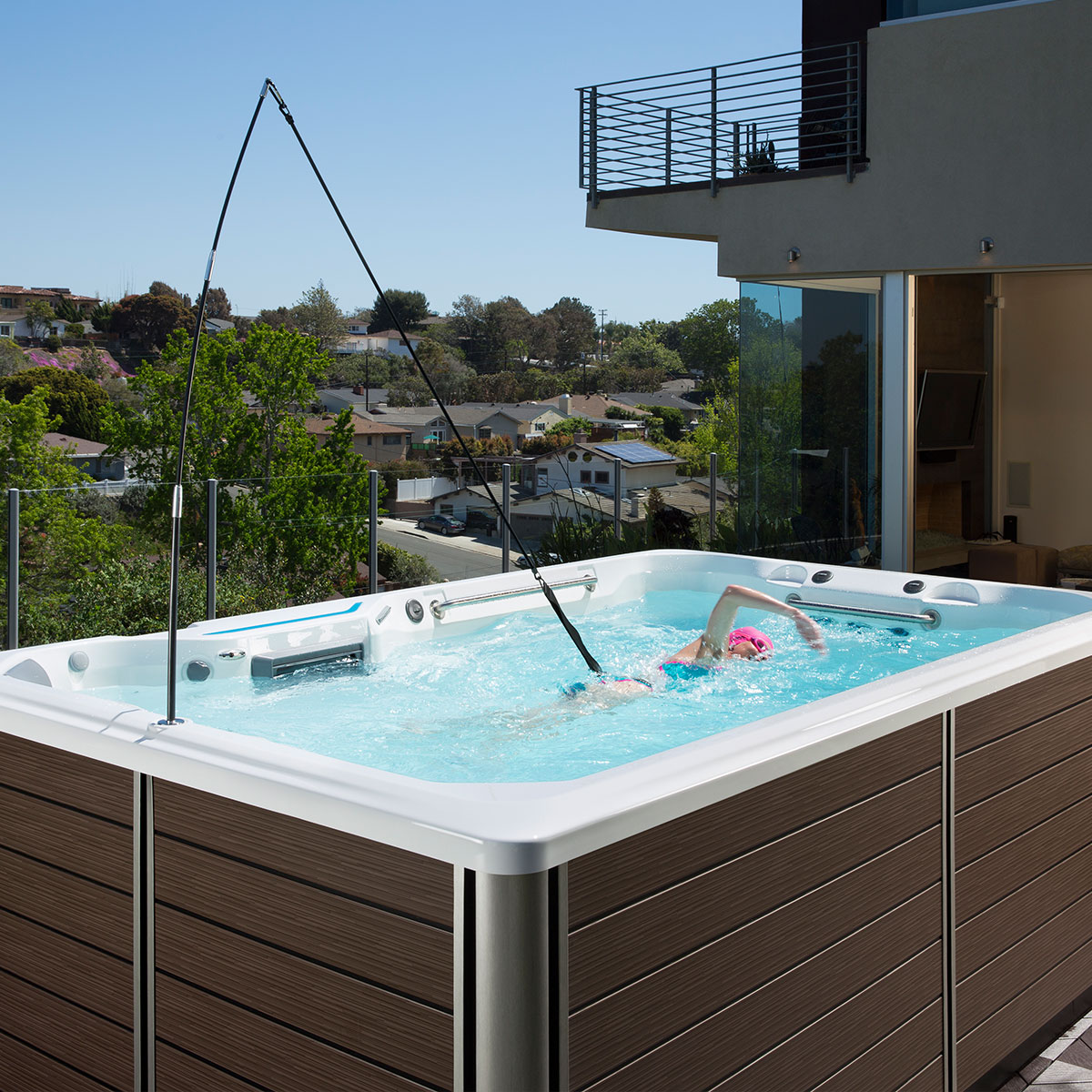

|Exercise Equipment Options||Swim Tether, Resistance Bands, Aqua Bike|

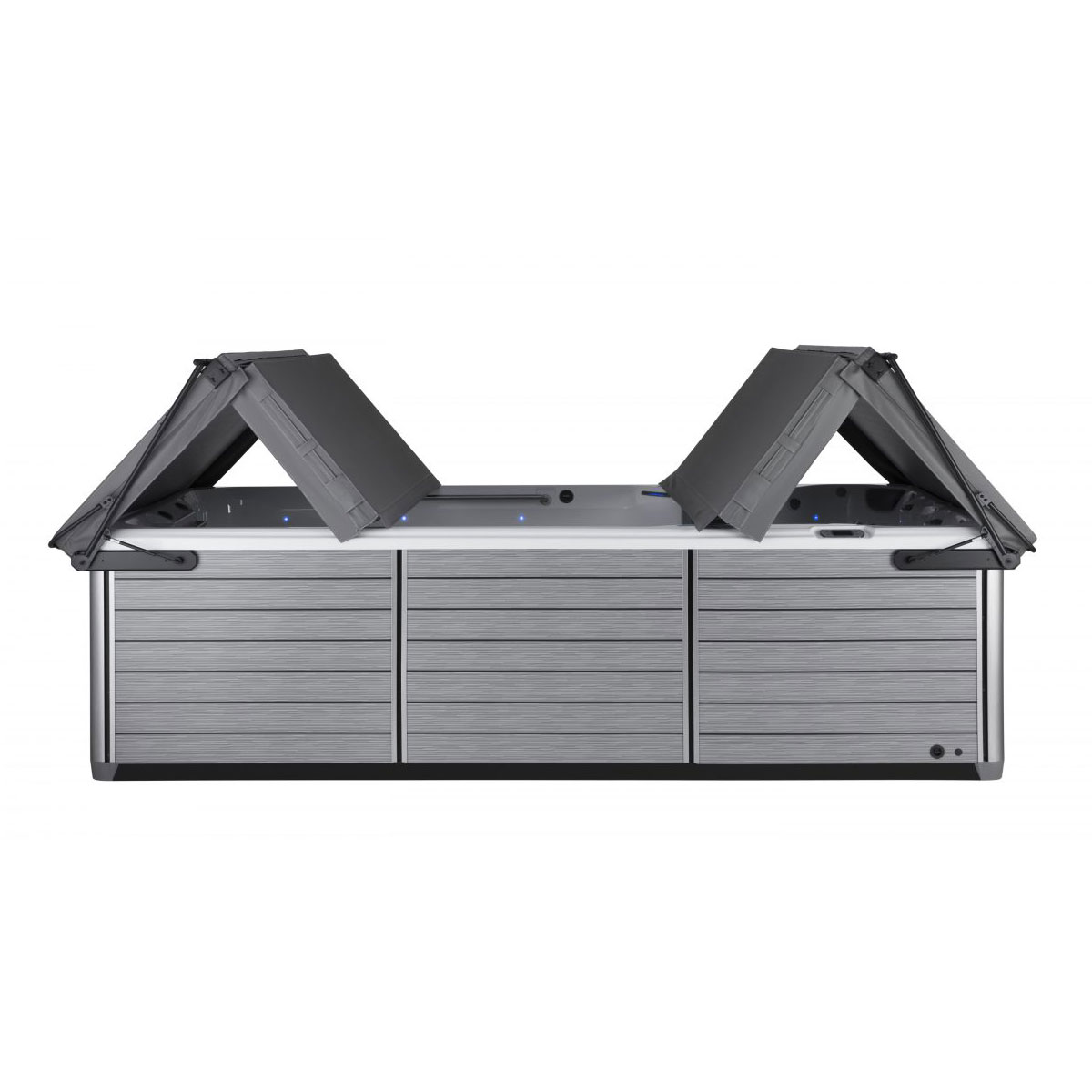

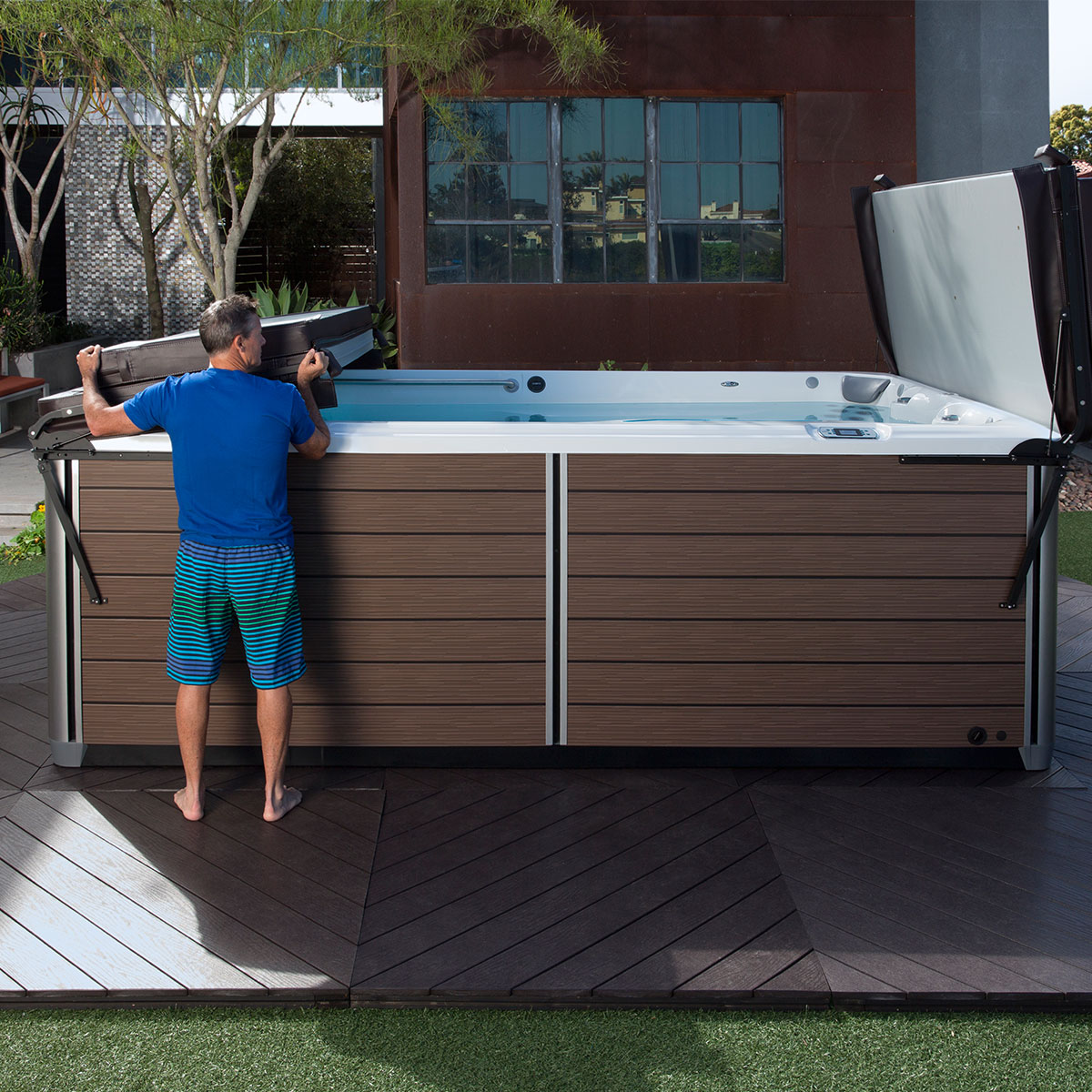

|Vinyl Cover & Lifter Options||Watkins Covers & Lifters, VacuSeal® Cover System, or CoverCradle®/ProLift® III|
|Additional Options||Floor Mirror, Gecko® In.Touch 2 Wi-Fi & Mobile App, CoolZone™ Cooling System, Signature Fitness System Steps|
|Footnote||*Includes water and 10 adults weighing 175 lbs. each|
The swim jets in RecSport® Recreation Systems provide the ideal environment for aquatic recreation at an affordable price. Three linear swim jets provide a steady stream of water that is more powerful than the average jet. The swim jets use a Venturi effect, not air, to draw-in or entrain more water, effectively multiplying the volume of water. This design feature results in a water stream with less turbulence than other swim spas on the market.

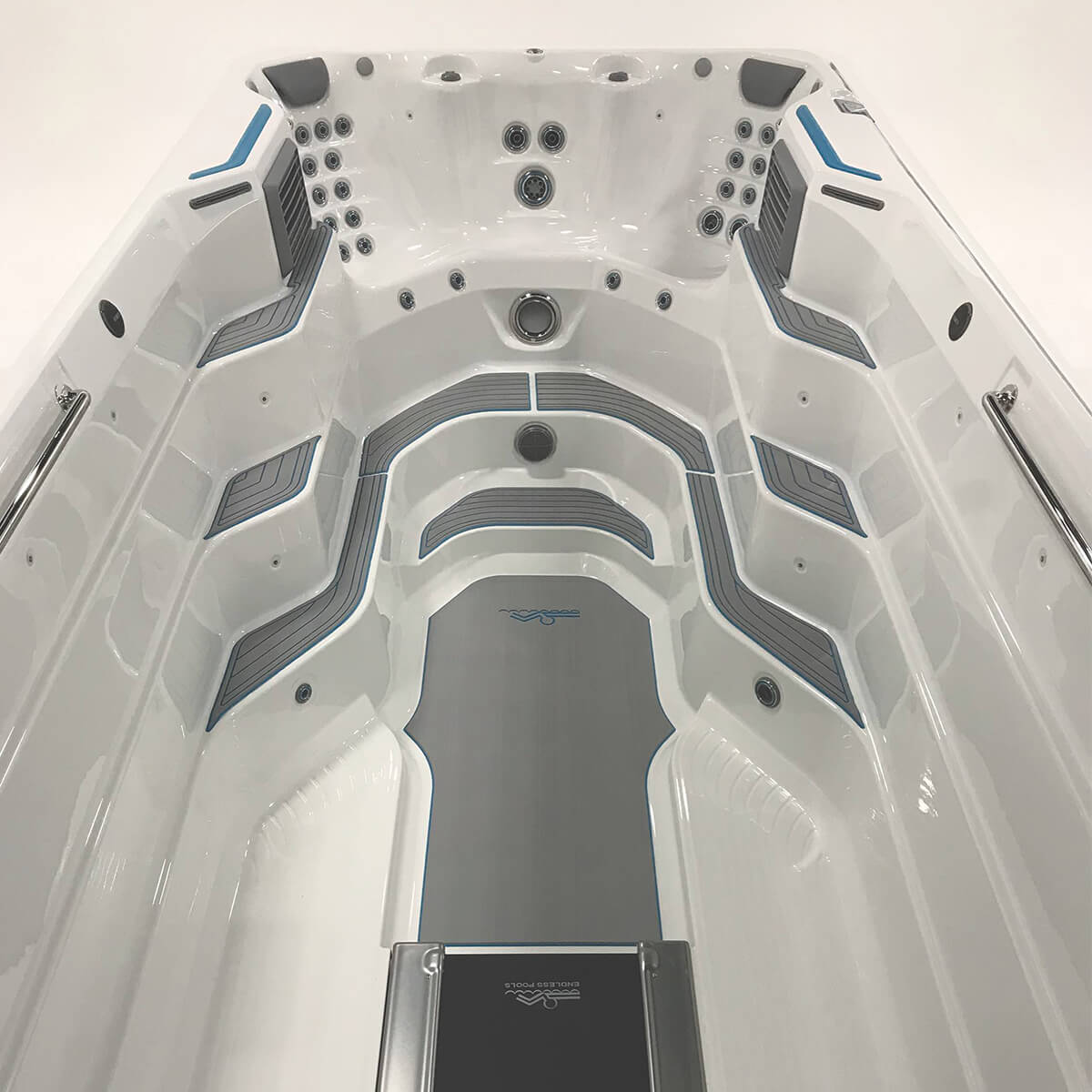

The seamless acrylic shell was specifically designed to maximize the space for exercise, play and relaxation with a unique center-facing spa seating configuration and large, 60” W X 78” L recreation space near the swim jets. Available in Ice Gray and Alpine White, it is built for durability and lasting beauty.
Spa Seating with Hydromassage Jets
The spa area of the R200 includes two bucketed hydromassage seats for back and foot massage and a 30-inch depth reef area located between the two seats; perfect for kids to play. Located next to the two bucket seats are the entry/exit steps on each side that also act as “cool down seats.” Additionally, a bench style hydromassage seat is located next to the swim jets giving this unit comfortable seating for up to five and room for many more!
The stunning lighting of RecSport Recreation Systems delivers maximum design impact. Its 20 multi-color LED points of light provide ample brilliance and beauty. The water feature is also backlit for added elegance.
Solid Wood Frame & ABS Base Pan
RecSport Recreation Systems are built on a sturdy wood frame coupled with an ABS base pan that is built to last.
Water Management System
RecSport Recreation Systems use eco-friendly CD Ozone to neutralize contaminants. Water is circulated through the hydromassage pump on low speed for regular water circulation and optimal water quality.
The Tri-Thermic™ Barrier System, a standard feature, provides three layers of insulation to conserve heat, enhance energy efficiency, and lower operating costs. The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystyrene) foam and reflective film attached to the inside of the cabinet, combined with a two-inch thick heat blanket made of high-quality recycled textile fibers and foil film, attached on the inside of the steel frame. Together these materials provide maximum thermal performance and achieve certification to California Energy Commission (CEC) and APSP 14 National Standards.
RecSport Recreation Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting and hydromassage jets.
By installing the optional plug-and-play Gecko® In.Touch Wi-Fi and Mobile App, you’ll gain full control of the system’s temperature, lights and jets from any Wi-Fi-enabled tablet or mobile device.
Anchors and Handrails for Aquatic Fitness Accessories
Every Fitness System is equipped with built-in anchors to attach fitness accessories including an optional swim tether and resistance bands. The convenient and sturdy handrails are also great for support for your resistance-training workout.
